ALUMINIUM HEATING
ELEMENTS

GM.75


Heaters GM.75


Grelci Maras d.o.o.
Jevčeva pot 2,
1351 Brezovica pri Ljubljani,
Slovenia
+386 (01) 365 3 518 | info@grelci-maras.si




USE


Our latest innovations in the extrusion process and tool heating feature cutting-edge aluminum heating elements model GM.75 and GM.76.

By using aluminum's superior thermal conductivity, these advanced heating elements achieve uniform heat distribution across the entire area.

This makes them highly efficient and reliable for various applications. Depending on the processing temperature or specific requirements, different heating structures can be tailored to optimize performance.

GM.75 and GM.76 flat heaters are ideal for dry environments, offering excellent performance and efficiency. However, for moisture-prone or wet conditions, we recommend the GM.752 or GM.762 heater models. These are specifically engineered to provide reliable and durable performance even in challenging, high-moisture settings.

Send inquiry









OPTIONS


  • Holes, cutouts and thermocouple holders

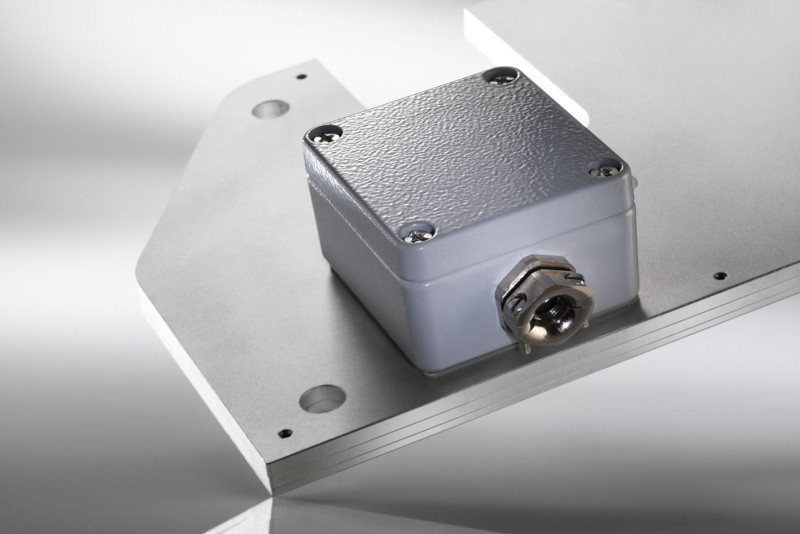

  • Variety of connection boxes
  • Integrated thermocouple type J, K or PT100
  • Thermal insualtions
  • Other pressure plate material such as stainless steel
  • 100% welded hermeticaly closed contruction
  • Integrated temperature limitor

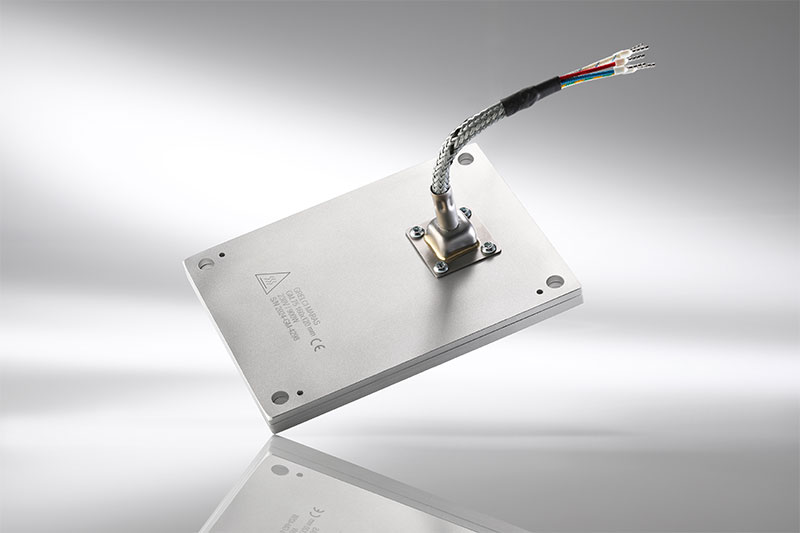

Aluminium heating elements GM.75




CONSTRUCTION OF GM.75


The GM.75 heaters can be constructed in three ways to suit your needs:

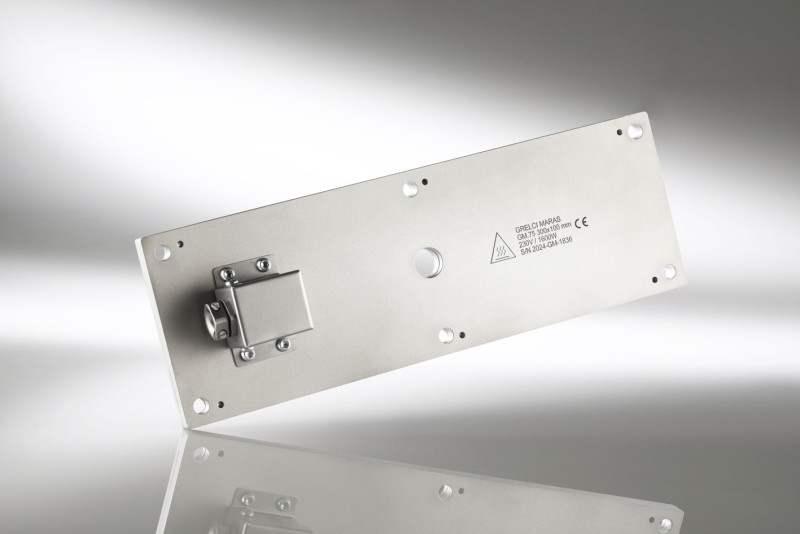

  • GM.75  - Construction with integrated micanite heater
  • GM.76 - Construction with integrated ceramic heater element
  • GM.752 or 756 – Designed for use in moisture enviroment
All GM.75 and GM.76 heating elements are equipped with heating wire and high-quality insulation for superior heat resistance and efficiency. Choose the right configuration for your application to maximize performance and reliability.








TECHNICAL SPECIFICATIONS



TS GM.75TS GM.76

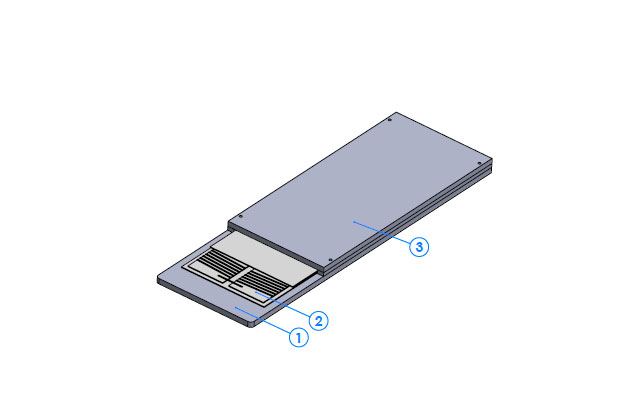

  1. Aluminium bottom  plate
  2. Insulation sandwich with resistance wire
  3. Aluminium top plate

Standard Voltage:
 		 230V, 400V (other on request)
 		 Wall thickness:
 		 8, 10, 11, 12, 13 mm

Sheath material:
 		 Aluminium
 		 Width:
 		 50-1200 mm

Isolation material:
 		 Micanite
 		 Lenght:
 		 100-1500 mm

Max Watt densty:
 		 6 W/cmm2
 		 Connection:
 		 Variety of options, see bottom

Operating temperature:
 		 max 350°C
 		 Connection cable:
 		 Temp. resistant cable with steel mesh up to 400°C

Heating conductor:
 		 Nickel-Chrom 80/20
 		 Integrated thermocouple:
 		 Type: J, K, PT100

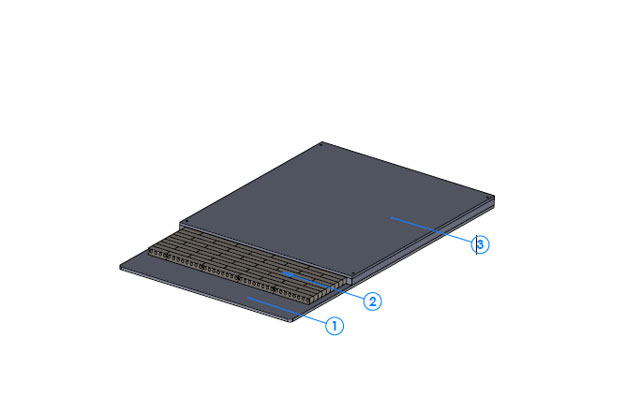

  1. Aluminium bottom  plate
  2. Steatit ceramic with resistance wire
  3. Aluminium top plate

Standard Voltage:
 		 230V, 400V (other on request)
 		 Wall thickness:
 		 14, 16, 18, 20 mm

Sheath material:
 		 Aluminium
 		 Width:
 		 50-1200 mm

Isolation material:
 		 Ceramic
 		 Lenght:
 		 100-1500 mm

Max Watt densty:
 		 8 W/cmm2
 		 Connection:
 		 Variety of options, see bottom

Operating temperature:
 		 max 450°C
 		 Connection cable:
 		 Temp. resistant cable with steel mesh up to 400°C

Heating conductor:
 		 Nickel-Chrom 80/20
 		 Integrated thermocouple:
 		 Type: J, K, PT100









ADVANTAGES


Advantages of aluminum heating elements:
  • High Operating Temperature: Designed to operate at temperatures up to 450°C, measured directly inside the heater for precision.
  • Consistent Heat Distribution: Uniform temperature distribution across all designs, ensuring reliable performance.
  • Quick Response Time: Equipped with an integrated temperature or resistance sensor for fast and accurate control.
  • Energy-Efficient Design: Optional internal insulation reduces radiated heat, improving energy efficiency and lowering costs.
  • Customizable Features: Customer-specific wall thickness options available to meet unique application needs.


FREQUENTLY ASKED QUESTIONS

Here are key factors to consider when selecting a flat aluminium heater:
Temperature Range?
Determine the maximum operating temperatures required for your process. With heater GM.75 we recomend max temp. 300°C for GM.76 you can go up to 450°C
When to select GM.752?
Choose the GM.752 Heater for Moisture-Proof and Waterproof Heating Applications.
Mounting of heater?
Mounting heater properly to the desired surface is essential for optimal performance. Ensure there are enough fixing holes and a pressure plate to prevent movement and ensure stability. This ensures efficient heat distribution, energy savings, and longer-lasting performance.
Do I need integrated thermocouple?
A thermocouple in flat aluminium heaters plays a crucial role in accurately measuring and controlling the temperature. It is essential for precise temperature regulation, process control, safety (by preventing overheating), and supporting research and development in laboratory environments.








SORODNI ARTIKLI

FLAT HEATERS
GM.65
FTE IR HEATERS

SPIRAL HEATERS
GM.80
Nozzle heaters
GM.10, GM.11, GM.12, GM.15, GM.62




HEATER DESIGN SERVICE


We offer detailed 3D models of each heater, allowing you to confirm the design before production. These models ensure precise specifications and compatibility with your application, providing peace of mind and confidence in your order.

Please be aware that this service will incur additional costs.
