NOZZLE HEATER

GM.10, GM.11, GM.12,
GM.15, GM.62


Grelci Maras d.o.o.
Jevčeva pot 2,
1351 Brezovica pri Ljubljani,
Slovenia
+386 (01) 365 3 518 | info@grelci-maras.si




DESCRIPTION



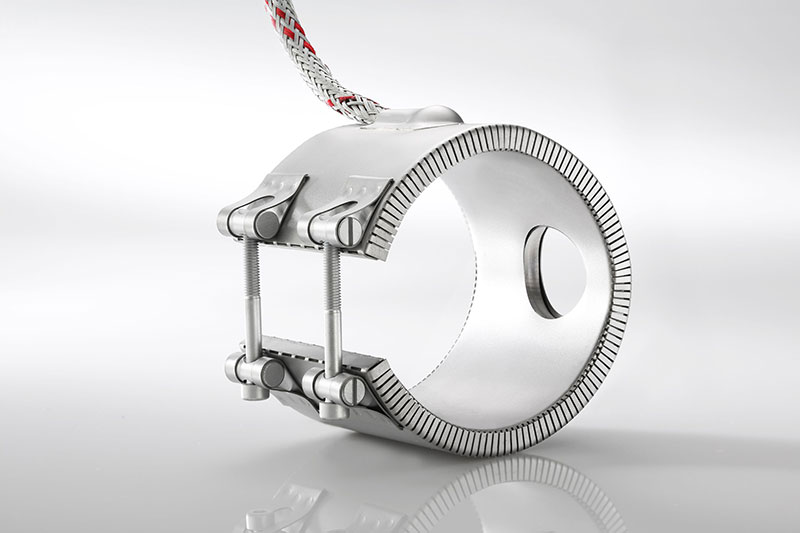

The Nozzle Band Heaters are manufactured for use on injection moulding machines in the plastic processing industry. They are plastic resistant which allowes high life expectanse and guarantee a required temperature on the nozzle.

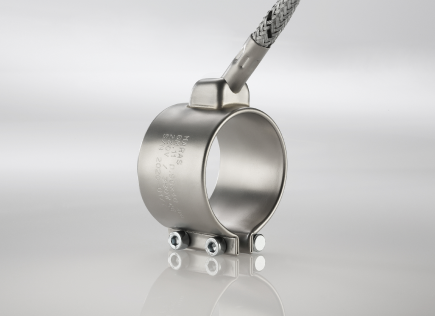

For high melt temperature (PC, glassfiber filled) and corozive materials (PVC) we recommend to use heaters made of stainless steel GM.11. For temperatures above 350°C (PTFE/PEEK) we recommend to use type GM.62 heaters. All heaters can be optional equiped with integrated thermocouple.

Nozzle heaters are also suitable for heating hot runners,  in the packaging industry, for filling various liquids (food industry) and for machines for special purposes.


Send inquiry








TEHNICAL SPECIFICATIONS



GM.10GM.11GM.12GM.15GM.62

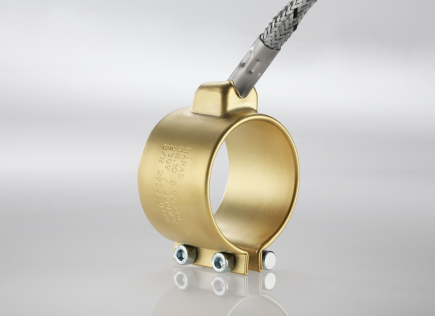

Standard Voltage:
 		 230V (other on request)
 		 Diameter:
 		 from 25 to 110 mm

Sheath material:
 		 Brass
 		 Width:
 		 20, 25, 30, 35, 40, 45, 50, 55, 60

Max. Watt density:
 		 4,5 W/cmm2
 		 Connection cable:
 		 Temp. resistant cable with steel mesh up to 400°C

Working temperature:
 		 up to 280°C
 		 Connection box:
 		 A

Insulation material:
 		 Micanit
 		 Cable direction:
 		 Axial, Tangencial, Radial

Heating conductor:
 		 Nickel-Chrom 80/20
 		 Connection angle:
 		 0°/ 30°/ 45° / 90°

Wall thickness: 3,5 mm Thermocouple: optional integrated type  J / K / PT100

Standard Voltage:
 		 230V (other on request)
 		 Diameter:
 		 from 30 to 110 mm

Sheath material:
 		 Stainles steel
 		 Width:
 		 20, 22, 25, 30, 35, ,38, 40, 50

Max. Watt density:
 		 6,5 W/cmm2
 		 Connection cable:
 		 Temp. resistant cable with steel mesh up to 400°C

Working temperature:
 		 up to 350°C
 		 Connection box:
 		 A

Insulation material:
 		 Micanit
 		 Cable direction:
 		 Axial, Tangencial, Radial

Heating conductor:
 		 Nickel-Chrom 80/20
 		 Connection angle:
 		 0°/ 30°/ 45° / 90°

Wall thickness: 3,5 mm Thermocouple: optional integrated type  J / K / PT100

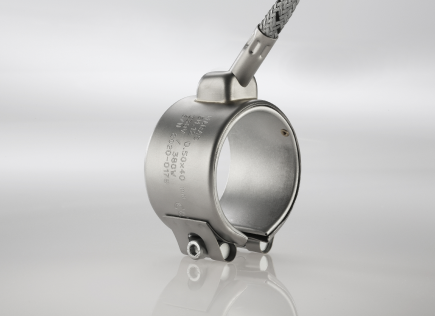

Standard Voltage:
 		 230V (other on request)
 		 Diameter:
 		 from 30 to 340 mm

Sheath material:
 		 Stainles steel
 		 Width:
 		 from 20 to 220 mm

Max. Watt density:
 		 6,5 W/cmm2
 		 Connection cable:
 		 Temp. resistant cable with steel mesh up to 400°C

Working temperature:
 		 up to 350°C
 		 Connection box:
 		 A

Insulation material:
 		 Micanit
 		 Cable direction:
 		 Axial, Tangencial, Radial

Heating conductor:
 		 Nickel-Chrom 80/20
 		 Connection angle:
 		 0°/ 30°/ 45° / 90°

Wall thickness: 5,0 mm Thermocouple: optional integrated type  J / K / PT100

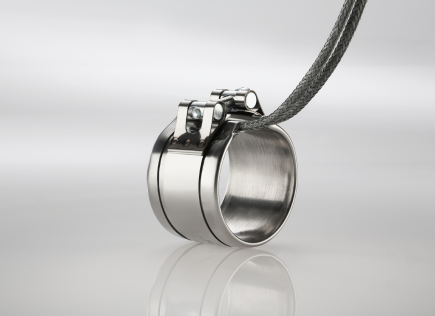

Standard Voltage:
 		 230V (other on request)
 		 Diameter:
 		 from 30 to 340 mm

Sheath material:
 		 Stainles steel
 		 Width:
 		 from 20 to 220 mm

Max. Watt density:
 		 6,5 W/cmm2
 		 Connection cable:
 		 Temp. resistant cable with steel mesh up to 400°C

Working temperature:
 		 up to 350°C
 		 Connection box:
 		 A

Insulation material:
 		 Micanit
 		 Cable direction:
 		 Axial, Tangencial, Radial

Heating conductor:
 		 Nickel-Chrom 80/20
 		 Connection angle:
 		 0°/ 30°/ 45° / 90°

Wall thickness: 4,5 mm Thermocouple: optional integrated type  J / K / PT100

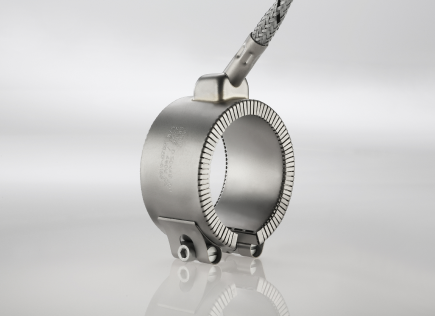

Standard Voltage:
 		 230V (other on request)
 		 Diameter:
 		 from 25 to 340 mm

Sheath material:
 		 Stainles steel
 		 Width:
 		 from 20 to 220 mm

Max. Watt density:
 		 10 W/cmm2
 		 Connection cable:
 		 Temp. resistant cable with steel mesh up to 400°C

Working temperature:
 		 up to 600°C
 		 Connection box:
 		 A

Insulation material:
 		 Ceramic steatit
 		 Cable direction:
 		 Axial, Tangencial, Radial

Heating conductor:
 		 Nickel-Chrom 80/20
 		 Connection angle:
 		 0°/ 30°/ 45° / 90°

Wall thickness: 8,5 mm Thermocouple: optional integrated type  J / K / PT100








OPTIONS


  • Varius connections versions
  • Integrated sensor or separate undernozzle thermcouple
  • Different types of cables
  • Selection of plugs

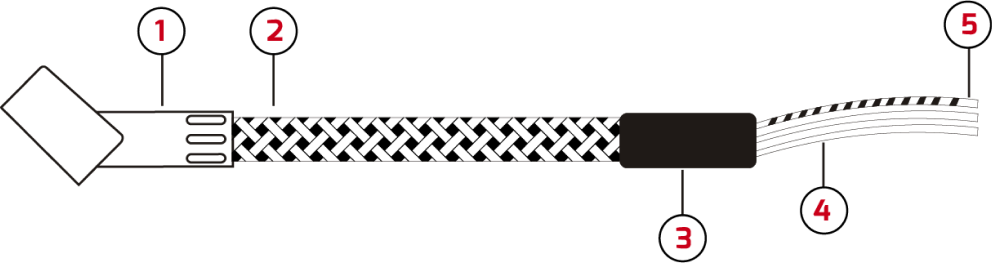

CABLE EXIT FOR NOZZLE BAND HEATERS


  1. Rigid connection
2. Metal braided sleeve
3. Heat resistant rubber protection
4. Nickel wire with colour code / 60 mm
5. Crimped cable ends – optional


Prefabricated standard cable lengths:
300 mm, 500 mm, 1000 mm, 1500 mm, 2000 mm








CABLE OUTPUT VARIANTS

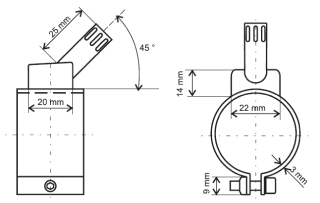

Tip A 45º Standard delivery
Tip C Radial 90º
Tip B Axial 0º
Tip D Tangecial 0º
Type, custom design,
Specife: angle and direction







SELECTION OF PLUGS


Choose from a range of high-quality connectors for our nozzle heaters, designed for seamless installation and reliable performance.




4 pin connector
  • 4 pin male connector ILME
  • 10A 230V
  • Art. 1100



5 pin connector
  • 5 pin male connector ILME
  • 10A 230V
  • Art. 1101



Schuko plug
  • Schuko connector
  • 16A 250V
  • Art. 1034








UNDERNOZZLE THERMCOUPLE






UNDER NOZZLE THERMOCOUPLE
GM.96

Code 0442
Dimension(mm) Ø30-Ø100
Cable length 2000 mm
Material AISI304
Sensor type FeCuNi/J
Max temperature 400°C
Angle(define at order) 90°/45°


  90°/45°

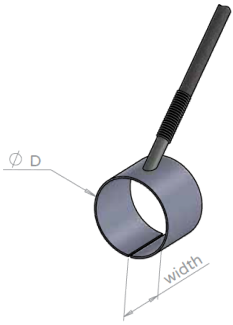

RING THERMOCOUPLE GM.97


Code 0442
Dimension(mm) Ø30-Ø100
Cable length 2000 mm
Material AISI304
Sensor type FeCuNi/J
Max temperature 400°C
Angle(define at order) 90°/45°

*Specify dimension at order







HEATER DESIGN SERVICE


We offer detailed 3D models of each heater, allowing you to confirm the design before production. These models ensure precise specifications and compatibility with your application, providing peace of mind and confidence in your order.

Please be aware that this service will incur additional costs.










EXPRESS PRODUCTION SERVICE


When your production halts due to a broken heater, our Express Production Service is here to help. We offer expedited heater manufacturing within 48 hours to get you back up and running quickly. (Service availability depends on current production capacity.) Please be aware that this service will incur additional costs.

Please be aware that this service will incur additional costs.
