SPIRAL
HEATERS


GM.80



Grelci Maras d.o.o.
Jevčeva pot 2,
1351 Brezovica pri Ljubljani,
Slovenia
+386 (01) 365 3 518 | info@grelci-maras.si


USE


Coil heaters are advanced heating elements designed for high-performance applications across various industries.
These compact, flexible, and efficient heaters provide targeted heat distribution, making them ideal for demanding environments.

Whether you're in the plastics, packaging, medical, or aerospace industry, coil heaters deliver reliable, consistent heat to maximize productivity and reduce downtime.

Application areas:
Injection moulding, Medical exuipment, Food processing, Aerospace and Defense.

Send inquiry



ADVANTAGES


  • High Durability: Built with stainless steel sheaths and robust construction to withstand extreme conditions.
  • Customizable Sizes and Shapes: Flexible design options to fit unique equipment requirements, including spirals, straight configurations, and flat coil shapes.
  • Precise Temperature Control: Advanced integrated thermocouple options ensure accurate heat regulation up to 650°C
  • Energy Efficiency: Optimized for fast heat transfer, reducing energy consumption and operational costs.

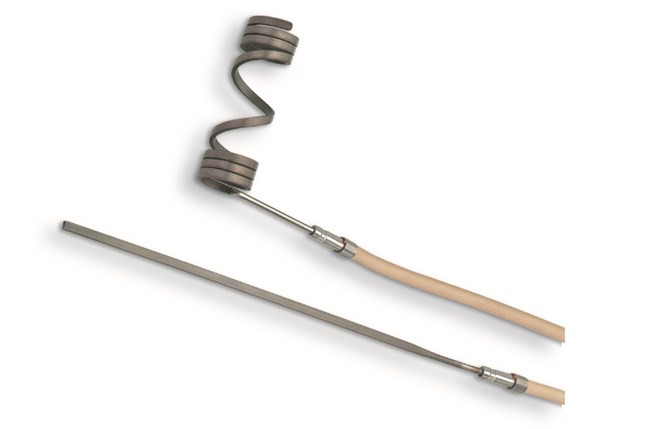

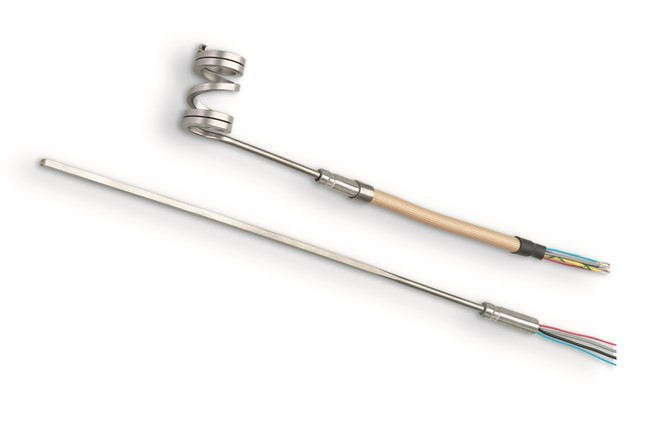

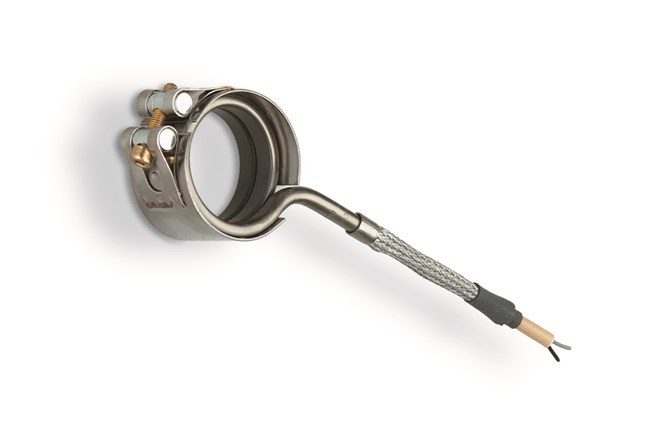

Spiral heaters GM.80

TECHNICAL SPECIFICATIONS




Standard Voltage:

230V( other on request)

Standard dimensions:

4,2x2,2 mm 1,8x3,2 mm 3x3 mm

Sheath material:

CrNi-steel , material no. 1.4541

Lenght:

200 – 2015 mm

Insulation material:

Pure magnesium oxide

Connection:

PTFE wires insulation, up to 260 °C

Max Watt densty:

15 W/cmm2

Connection cables:

1000 mm or other

Operating temperature:

max 750°C

Integrated thermocouple:

As option type J / K

Heating conductor:

Nickel-Chrom 80/20

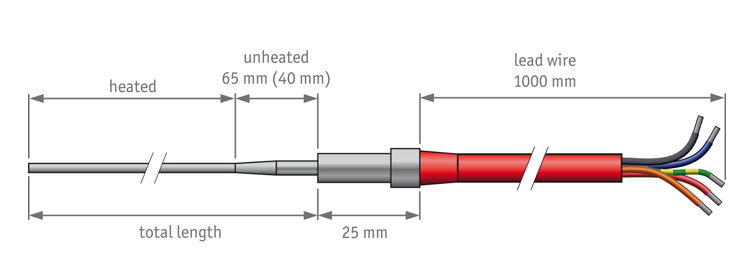

Standard dimensions of GM.80 coiled heaters




GM.80  4,2 x 2,2 mm
Power(W) Total lenght (mm) Heated lenght (mm)
200 315 250
225 345 280
250 400 335
290 450 385
350 252 460
400 585 520
470 665 600
620 825 760
690 965 900
850 1165 1100
950 1265 1200
1100 1465 1400
1200 1615 1550
1400 1815 1750
1600 2015 1950
    Items on stock
