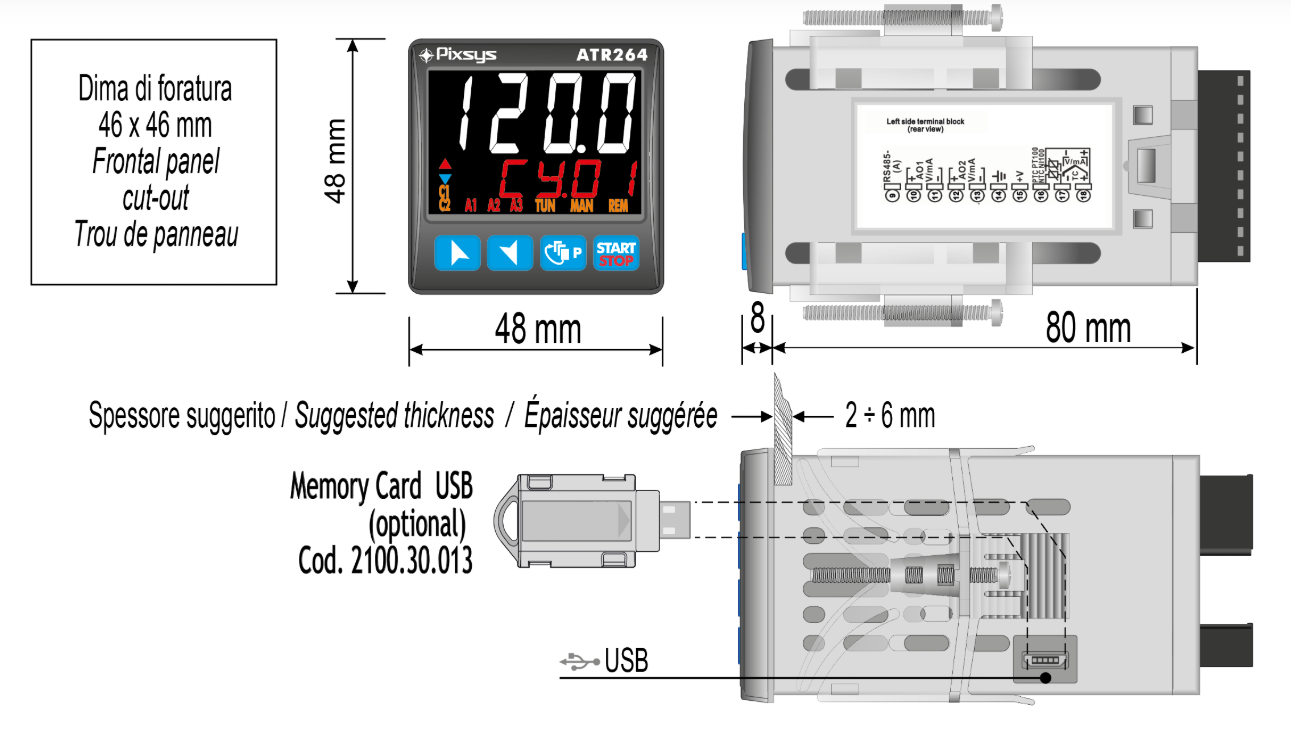

Dimensions:
|
48 x 48 x 80mm
|
Tuning:
|
Manual or automatic
|
Material:
|
Box: PC UL94V2 self-extinguishing, front panel: PC UL94V2
|
Alarm mode:
|
Absolute / Threshold, Band, High / Low deviation. Alarm with optional Manual reset. Loop Break Alarm
|
Weight:
|
Approx. 185 g
|
Double P.I.D:
|
Heating / Cooling with dual P.I.D.
|
Sealing:
|
Front panel: IP65, Enclosure+ terminal blocks: IP20
|
Data protection:
|
Lock of Command/Alarm Setpoints - Access to parameters by Password
|
Operating conditions:
|
Temperature 0-45 °C, humidity 35..95 uR%
|
Open / Close logics:
|
Motorized valves command
|
Certifications:
|
CE, UL (-12ABC-T only)
|
Software parameter configuration:
|
Software MyPixsysLab, App MyPixsys |
Control algorithms:
|
ON - OFF with hysteresis, P., P.I., P.I.D., P.D. time proportional
|
Cycles / Profiles
|
up to 15
|
| Steps/Segments |
up to 30 for each cycle ( max duration per step 99.59 hh.mm) |
|
|
