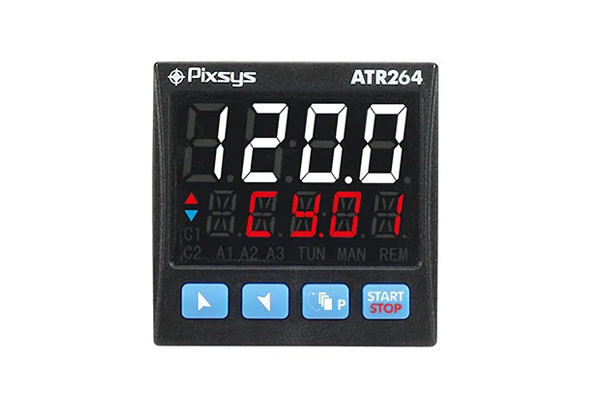

ATR264-13ABC
Power supply: 24...230V AC/DC
Power supply: 24...230 V AC / DC ±15% 50/60 Hz - galvanic isolation 2,5KV
Power consumption: 8 Watt/VA
Display: Display 4 digits 0,52" white + Display 5 digits 0,3" red
Analogue inputs: 1x Ris. 16bit, programmable for thermocouples K, J, S, R ,T, E,N, B (automatic compensation of cold junction -25...85°C, accuracy @25°C ±0,2% F.S. ±1 digit F.S.), Thermoresistances PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (B 3435K), Process signals 0-20/4..20mA, 0-1/0-5/0-10V; 0..60mV, Potentiometers F.S. 1....150Kohm: Current transformer 50mA
Digital output: 2 x PNP 12VDC - 25mA o 24VDC - 15mA selectable by parameter
Digital input: 2x PNP
Analogue outputs: 1 x 4..20 mA (40000 points ± 0,2% F.S ) o 0..10 V DC (40000 points ± 0,2% F.S.)
Relays Output: 2x 2 A - 250 V AC resistive load
Serial communication : RS485 (1200..115200 Baud) galvanically isolated
ordering code: 1136
