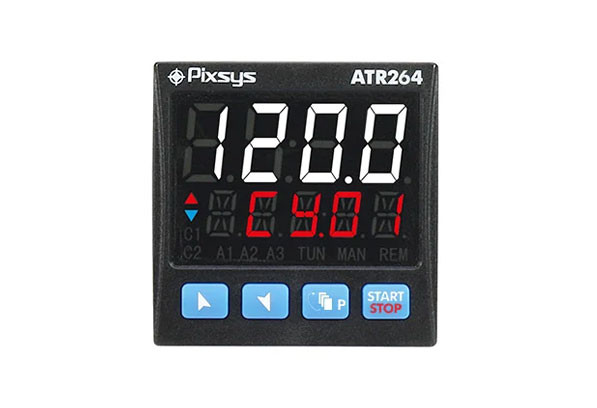

ATR264-12ABC-T
Power supply: 24...230V AC/DC
Power supply: 24...230 V AC / DC ±15% 50/60 Hz - galvanic isolation 2,5KV
Power consumption: 9 Watt/VA
Display: Display 4 digits 0,52" white + Display 5 digits 0,3" red
Analogue inputs: 1x Ris. 16bit, programmable for thermocouples K, J, S, R ,T, E,N, B (automatic compensation of cold junction -25...85°C, accuracy @25°C ±0,2% F.S. ±1 digit F.S.), Thermoresistances PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (B 3435K), Process signals 0-20/4..20mA, 0-1/0-5/0-10V; 0..60mV, Potentiometers F.S. 1....150Kohm
Digital output: 2 x PNP 12VDC - 25mA o 24VDC - 15mA selectable by parameter
Digital input: 2x PNP
Analogue outputs: 2x Selection 4..20 mA (40000 points ± 0,2% F.S.) o 0..10 V DC (40000 points ± 0,2% F.S.) for command or retransmission PV / SPV
Relays Output: 2x 2 A - 250 V AC resistive load
Serial communication : RS485 (1200..115200 Baud) galvanically isolated

ordering code: 1135
Add to cart



MAIN AND SOFTWARE FEATURES





Dimensions:

48 x 48 x 80mm

Tuning:

Manual or automatic

Material:

Box: PC UL94V2 self-extinguishing, front panel: PC UL94V2

Alarm mode:

Absolute / Threshold, Band, High / Low deviation. Alarm with optional Manual reset. Loop Break Alarm

Weight:

Approx. 185 g

Double P.I.D:

Heating / Cooling with dual P.I.D.

Sealing:

Front panel: IP65, Enclosure+ terminal blocks: IP20

Data protection:

Lock of Command/Alarm Setpoints - Access to parameters by Password

Operating conditions:

Temperature 0-45 °C, humidity 35..95 uR%

Open / Close logics:

Motorized valves command

Certifications:

CE, UL (-12ABC-T only)

Software parameter configuration:

Software MyPixsysLab, App MyPixsys
Control algorithms:

ON - OFF with hysteresis, P., P.I., P.I.D., P.D. time proportional

Cycles / Profiles

up to 15

Steps/Segments    up to 30 for each cycle ( max duration per step 99.59 hh.mm)
