USE

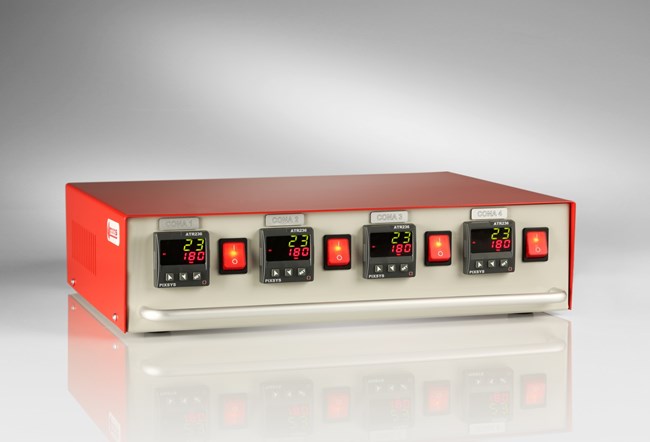

Temperature controller PULZONSmart multi zone controller is used for hotrunner applications in the automotive, packaging, cosmetic, and medical industries. PULZONSmart range extends from single zone up to 12 zones controller and they are offering easy to use solution and are cost effective. Each zone is equipped with a PIXSYS ATR227 controller and CELDUC SSR50A.
Standard controller includes features such as Autotuning/Softstart, manual mode in case of defective thermocouple (If the sensor breaks during automatic functioning, controller moves to manual mode while maintaining the output percentage command unchanged as generated by the PIDimmediately before breakage).




ADVANTAGES


  • Easy to use
  • 10A per zone, option 16A per zone
  • Two 4-digits displays for set  and actual values
  •  Smart selfoptimization, AUTOTuning/SOFTStart
  • Manual / Automatic mode switchable
  • Continuous operation of a zone even with a defective thermocouple
  • Alarm exit option





Thermocouple Input:

Thermocouple Type: Type J or K Temperature range 0…500 °C, 32…932 °F Display in °C or °F (automatic compensation of the cold junction 0..50 °C, ± 0,2% F.S. ± 1 Digit F.S.)

Temperature Controller:

ATR142 Microprocessor-controlled controller in 71x29mm, modular design, with fully automaticsystem, individual setpoint and actual value with two 4-digit LED display, status alarm LEDs, and FNC key for switch-overto manual mode

Power Outputs:

10A 230V option 16A 23OV with built in 50A solid-state relays

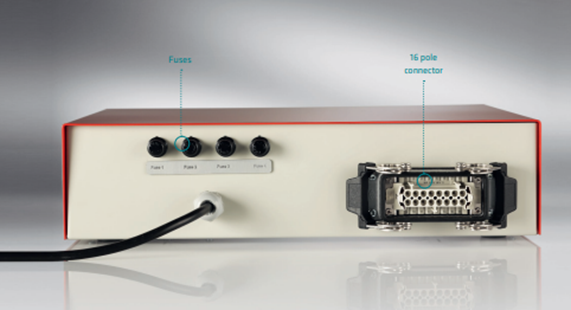

Plug connectors:

The heating circuits are uniformly distributed on L1, L2, L3

Fuse:

fast FF 10A, 6.3 x 32 mm

Power Supply:

400VAC, 50Hz, 3P / N / PE

Mains Connection:

Mains cable with 3 m CEE plug

Operating conditions:

Operation: 0...+55°C, humidity 35..95 RH%

Device construction:

Closed cabine, metal-half shell housing, powder painted

Protection type:

IP20

CE marking:

EN 60204-1





VERSIONS

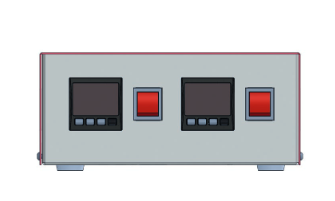

Order number: PULZONSmart 2 Dimensions: (WxDxH in mm) 235x260x190
Number of zones: 2 Power supply [3m] plug Schuko
Plug for controller: 1 x 10 pole Maximum power oultet: 4kW
Fuse: FF 10A 6,3x32 mm

INSTRUCTIONS

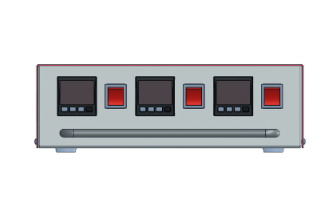

Order number: PULZONSmart 3 Dimensions: (WxDxH in mm) 325x310x109
Number of zones: 3 Power supply [3m] plug CEE 16A
Plug for controller: 1 x 16 pole Maximum power oultet: 6kW
Fuse: FF 10A 6,3x32 mm

INSTRUCTIONS

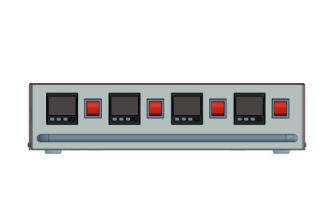

Order number: PULZONSmart 4 Dimensions: (WxDxH in mm) 420x310x109
Number of zones: 4 Power supply [3m] plug CEE 16A
Plug for controller: 1 x 16 pole Maximum power oultet: 8kW
Fuse: FF 10A 6,3x32 mm

INSTRUCTIONS

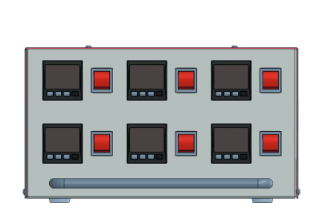

Order number: PULZONSmart 6 Dimensions: (WxDxH in mm) 330x360x190
Number of zones: 6 Power supply [3m] plug CEE 16A
Plug for controller: 1 x 24 pole Maximum power oultet: 11kW
Fuse: FF 10A 6,3x32 mm

INSTRUCTIONS

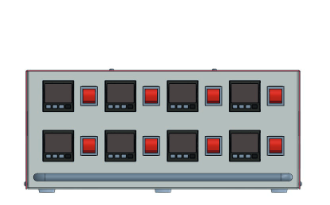

Order number: PULZONSmart 8 Dimensions: (WxDxH in mm) 420x310x190
Number of zones: 8 Power supply [3m] plug CEE 32A
Plug for controller: 2 x 16 pole Maximum power oultet: 15kW
Fuse: FF 10A 6,3x32 mm

INSTRUCTIONS


Order number: PULZONSmart 12 Dimensions: (WxDxH in mm) 605x410x190
Number of zones: 12 Power supply [3m] plug CEE 32A
Plug for controller: 2 x 24 pole Maximum power oultet: 22kW
Fuse: FF 10A 6,3x32 mm

INSTRUCTIONS
