MAIN AND SOFTWARE FEATURES
|
 |
|

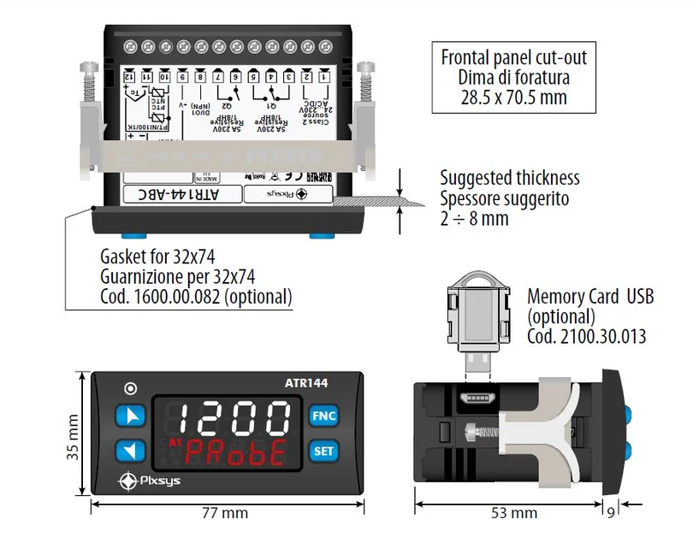

Dimensions:
|
74 x 32 x 53 mm
|
Tuning:
|
Manual or automatic
|
Material:
|
Box: PC UL94V2 self-extinguishing. Front panel: PC UL94V2
|
Alarm mode:
|
Absolute/ threshold, band, upper/lower deviation, Alarms with optional manual reset and activation delay, Loop Break Alarm.
|
Weight:
|
Approx. 120 g
|
Double P.I.D:
|
Heating / Cooling with dual P.I.D.
|
Sealing:
|
Front panel: IP65, Enclosure+ terminal blocks: IP20
|
Data protection:
|
Lock of Command/Alarm Setpoints - Access to parameters by Password
|
Operating conditions:
|
Temperature 0-45 °C, humidity 35..95 RH%, max elevation 2000m
|
Open / Close logics:
|
Motorized valves control
|
Certifications:
|
CE, UL
|
Software parameter configuration:
|
Memory Card, software MyPixsysLab, codes EASY-UP - Programming via APP (NFC) "MyPixsys" for Android e iOS devices |
Control algorithms:
|
ON - OFF with hysteresis, P., P.I., P.I.D., P.D. time-proportioned
|
Soft-Start
|
Rising gradient programmable as Degree / hour or fixed output % |
Communication protocols
|
Modbus RTU
|
|
|
|
