USE

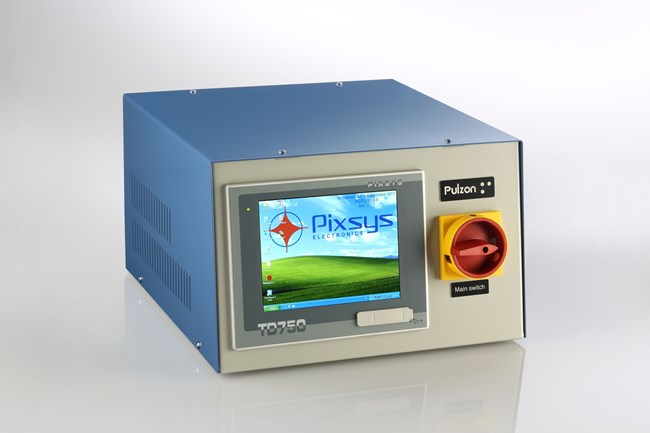

The PULZONTouch series controllers was specifically designed for applications with a higher number of control zones on a mould.

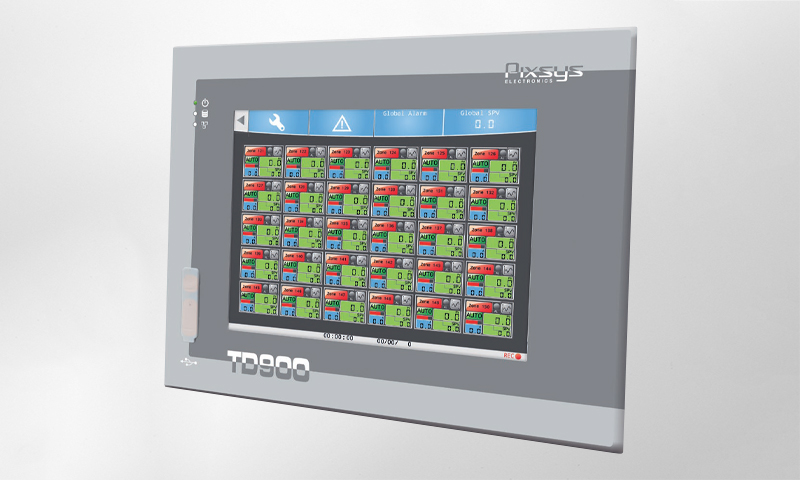

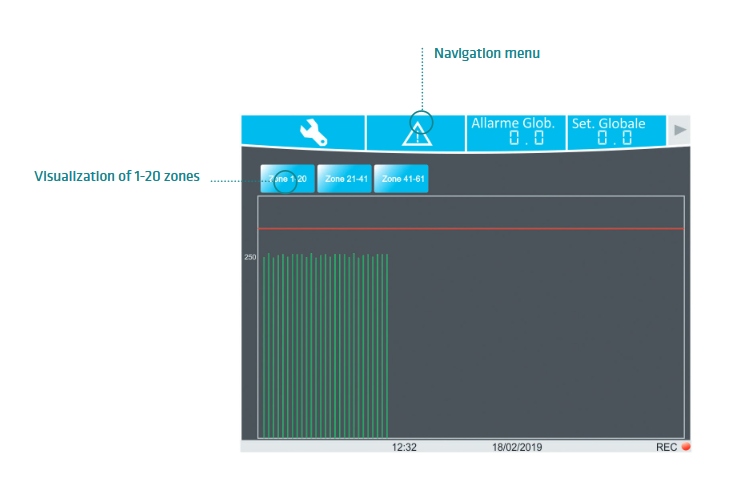

The PULZONTouch have a touchscreen for parametrization and operation, the user can adjust for each zone set-point, actual value, heating current etc. Operator can easily set temperature for all zones at once with selecting global setpoint. Integrated software allows user to Load / Save hotrunner configuration (number of connected zones, setpoint for each zone, automatic/manual status). Zone graph is added to each zone, by pressing this icon visualizes the graph scale of trend temperature, setpoint and load current. The PULZONTouch have extensive monitoring functions to protect tools, hotrunners and controllers. All of the functions and parameters that are relevant to the injection process are constantly monitored and indicated in the alarm log in event of a failure. This includes monitoring the wiring for reversed polarity, breakages and short circuits, command SSR. The output rate monitor detects irregularities in the heating behaviour. Defective heaters and SSR are also detected.

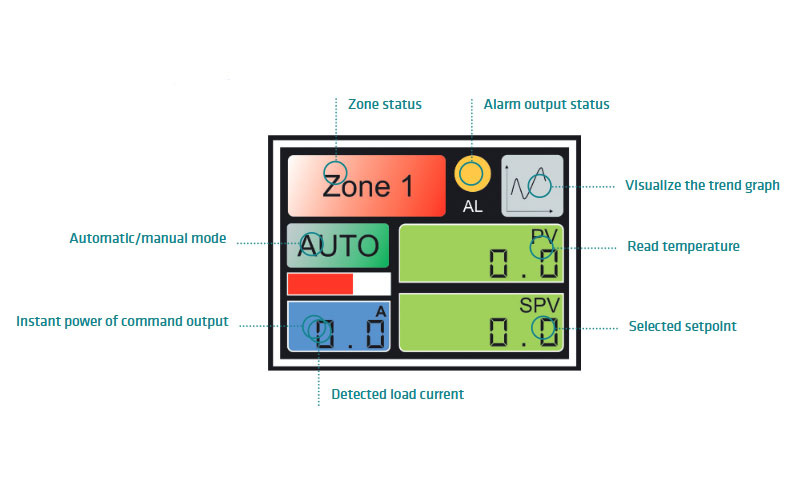

Each zone visualization












Key features

  • Available 7”, 10” and 15” Touch Screen Display
  • PID temperature regulation
  • Current monitoring
  • Setting of setpoints for all connected zones with one touch
  • Small footprint design
  • Extensive monitoring functions
  • Language switching
  • Remote use option







Thermocouple Input Thermocouple Type: Type J or K Temperature range 0…500 °C, 32…932 °F
Display in °C or °F (automatic compensation of the cold junction 0..50 °C, ± 0,2% F.S. ± 1 Digit F.S.)
Temperature Controller: PIXSYS DRR450 with MODBUS RTU communication
Power Outputs: 10A 230V option 16A 23OV with built in 32A solid-state relays
Plug connectors: The control outputs are on massive multipolar connectors (see standard table)
Fuse: fast FF 10A, 6.3 x 32 mm
Power Supply: 400VAC, 50Hz, 3P / N / PE
Mains Connection: Mains cable with 3 m CEE plug
Operating conditions: Operation: 0...+55°C, humidity 35..95 RH%
Device construction: Closed cabine, metal-half shell housing, powder painted
Protection type: IP20
CE marking: EN 60204-1




VERSIONS




Order number: PULZONTouch 12 Dimensions: (WxDxH in mm) 200x525x420
Number of zones: 12 Power supply [3m] plug CEE 32A
Plug for controller: 2 x 24 pole Maximum power oultet: 22kW
Fuse: FF 10A 6,3x32 mm Touch panel: 7”

Order number: PULZONTouch 18 Dimensions: (WxDxH in mm) 200x640x420
Number of zones: 18 Power supply [3m] plug CEE 63A
Plug for controller: 3 x 24 pole Maximum power oultet: 36kW
Fuse: FF 10A 6,3x32 mm Touch panel: 7”

Order number: PULZONTouch 24 Dimensions: (WxDxH in mm) 400x525x420
Number of zones: 24 Power supply [3m] plug CEE 63A
Plug for controller: 4 x 24 pole Maximum power oultet: 43kW
Fuse: FF 10A 6,3x32 mm Touch panel: 7”

Order number: PULZONSmart 32 Dimensions: (WxDxH in mm) 400x640x420
Number of zones: 32 Power supply [3m] plug CEE 63A
Plug for controller: 6 x 24 pole Maximum power oultet: 43kW
Fuse: FF 10A 6,3x32 mm Touch panel: 10,5”

Order number: PULZONSmart 48 Dimensions: (WxDxH in mm) 650x640x420
Number of zones: 48 Power supply [3m] plug CEE 63A
Plug for controller: 8 x 24 pole Maximum power oultet: 43kW
Fuse: FF 10A 6,3x32 mm Touch panel: 10,5”

Order number: PULZONSmart 60 Dimensions: (WxDxH in mm) 00x640x420
Number of zones: 60 Power supply [3m] plug CEE 32A
Plug for controller: 10 x 24 pole Maximum power oultet: 43kW
Fuse: FF 10A 6,3x32 mm Touch panel: 10,5” or 15”
