PULZONSmart single zone controller
 |
|

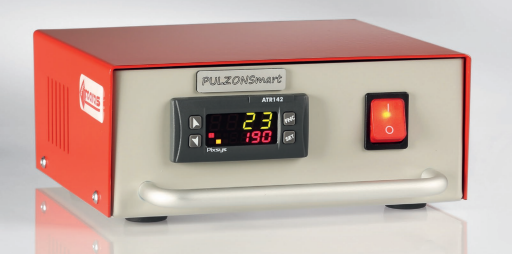

PULZONSmart Single zone temperature controller features compact design and easy operation using separate displays and buttons. The unit is operated with input buttons and main switch on front panel. Hotrunner is protected with malfunction alarms such as sensor breakage, manual mode operation allows to use hotrunner even with defective thermocouple and maintains the ouput percentage command unchanged. The back side of metal housing holds 5-pole connector, circuit fuse and mains cable.
KEY FEATURES
- 10A per zone
- Two 4-digits displays for set- and actual values
- Smart selfoptimization, AUTOTuning/SOFTStart
- Manual / Automatic mode switchable
- Continuous operation of a zone even with a defective thermocouple
- Simple operation
- 5 pole connector plug
|
TEHNICAL SPECIFICATIONS
| Housing: |
|
Metal enclosure, powder-coated Dimensions (W x H x D) in mm: 205 x 85 x 190, Weight: 2.4 kg |
|
| Temperature Controller: |
|
ATR142 Microprocessor-controlled controller in 71x29mm, modular design, with fully automatic
system, individual setpoint and actual value with two 4-digit LED display, status alarm LEDs, and FNC key for switch-over
to manual mode |
|
| Thermocouple type: |
|
J / K (select in the menu) |
|
| Power Outputs: |
|
230 VAC, max. 10A (option 16A) per zone, with built-in 50A solid-state relay |
|
|
| Fuse: |
|
fast FF 10A, 6.3 x 32 mm |
| Mould Connection: |
|
5 PIN connector plug ILME/HARTING |
| Mains Supply: |
|
230 VAC, 50Hz, 1P / N / PE |
| Mains Connection: |
|
Mains cable with 3 m shock-proof connector |
| Ambient Temperature: |
|
Operation: 0...+55°C |
|
|
|
The PULZONSmart single zone temperature controller features a compact design and user-friendly operation, with separate displays and buttons for easy control. It is operated via front panel input buttons and a main power switch. The unit includes safety features such as malfunction alarms for issues like sensor breakage.
In manual mode, the hotrunner can continue operating even with a defective thermocouple, maintaining the set output percentage unchanged. The controller's rear panel includes a 6-pole connector, circuit fuse, and mains cable for convenient installation. Users can choose between different thermocouple types (J, K, or PT100) in the settings menu.
KEY FEATURES
- 16A per zone
- Two 4-digits displays for set- and actual values
- Smart selfoptimization, AUTOTuning/SOFTStart
- Manual / Automatic mode switchable
- Continuous operation of a zone even with a defective thermocouple
- Simple operation
- 6 pole connector plug
|
TEHNICAL SPECIFICATIONS
| Housing: |
|
Metal enclosure, powder-coated Dimensions (W x H x D) in mm: 205 x 85 x 190, Weight: 2.4 kg |
|
| Temperature Controller: |
|
ATR144 Microprocessor-controlled controller in 71x29mm, modular design, with fully automatic system, individual setpoint and actual value with two 4-digit LED display, status alarm LEDs, and FNC key for switch-over to manual mode |
|
| Thermocouple type: |
|
J / K / PT100 (select in the menu) |
|
| Power Outputs: |
|
230 VAC, max. 16A per zone, with built-in 50A solid-state relay |
|
|
| Fuse: |
|
fast FF 16A, 6.3 x 32 mm |
| Mould Connection: |
|
6 PIN connector plug ILME/HARTING |
| Mains Supply: |
|
230 VAC, 50Hz, 1P / N / PE |
| Mains Connection: |
|
Mains cable with 3 m shock-proof connector |
| Ambient Temperature: |
|
Operation: 0...+55°C |
|
