USE

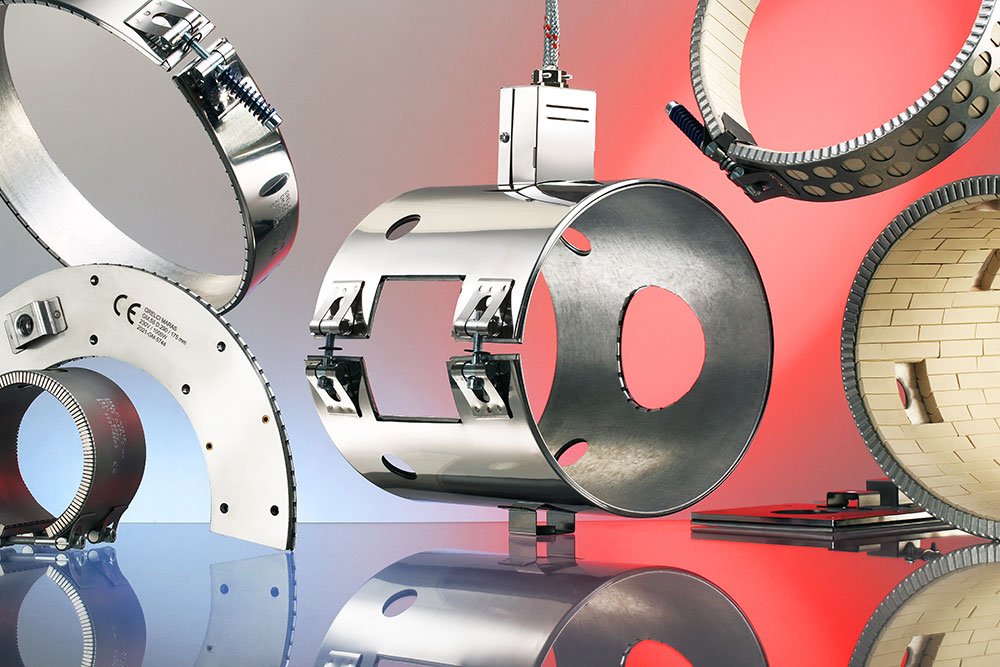

Ceramic band heaters are widely used in various industries for their superior heating performance. Designed for direct heating of cylindrical surfaces, they are commonly applied to machines like injection molding, extrusion equipment, and pipe heating. Made from high-quality ceramic insulation, they ensure consistent heat distribution, reduce energy consumption, and enhance operational efficiency.

Ideal for high-temperature environments, ceramic band heaters are known for their durability and resistance to wear, providing long-lasting and reliable heating solutions for a range of industrial applications.

We also specialize in manufacturing ceramic band heaters for special applications, capable of withstanding temperatures up to 800°C, offering high-performance solutions for extreme heating needs.

Send inquiry

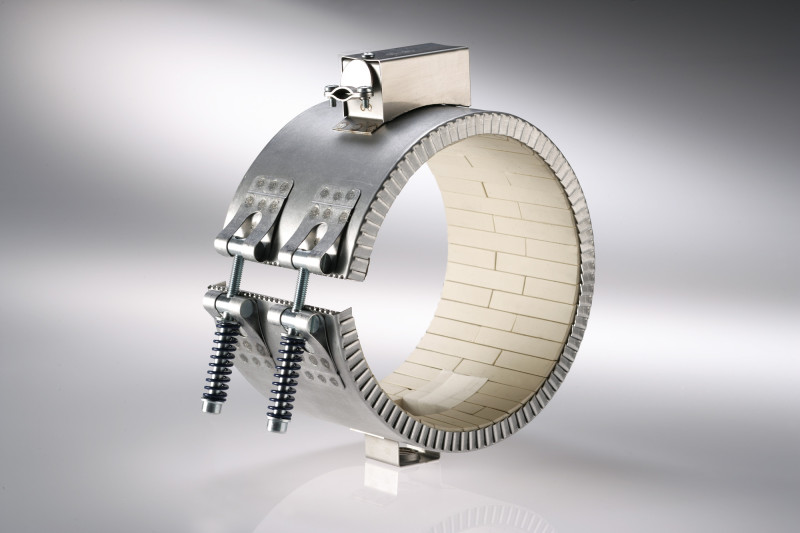

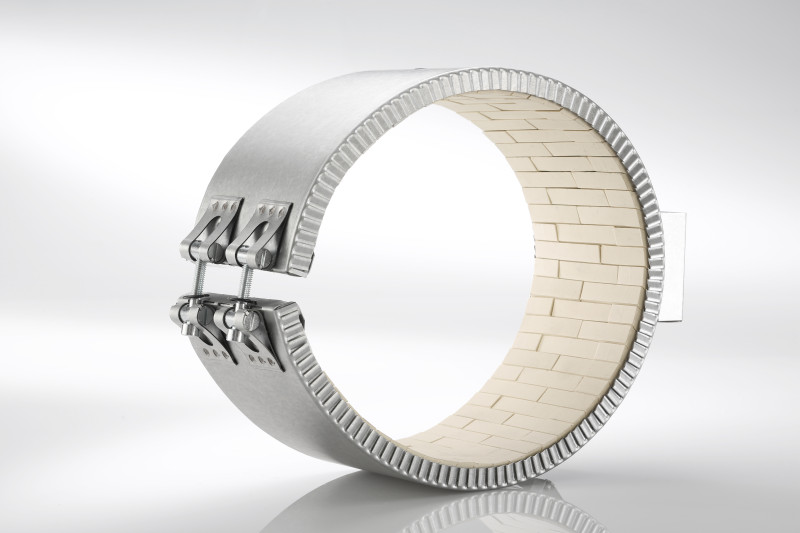

Ceramic insulated band heaters

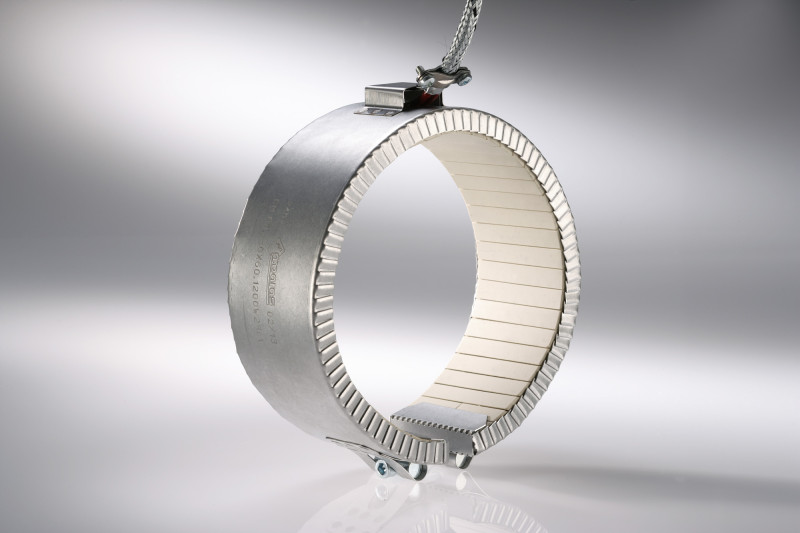

200X100

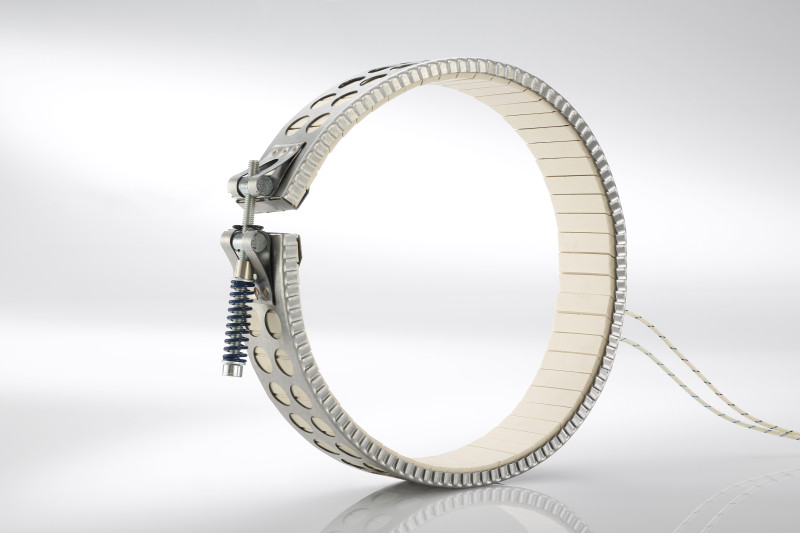

200X50

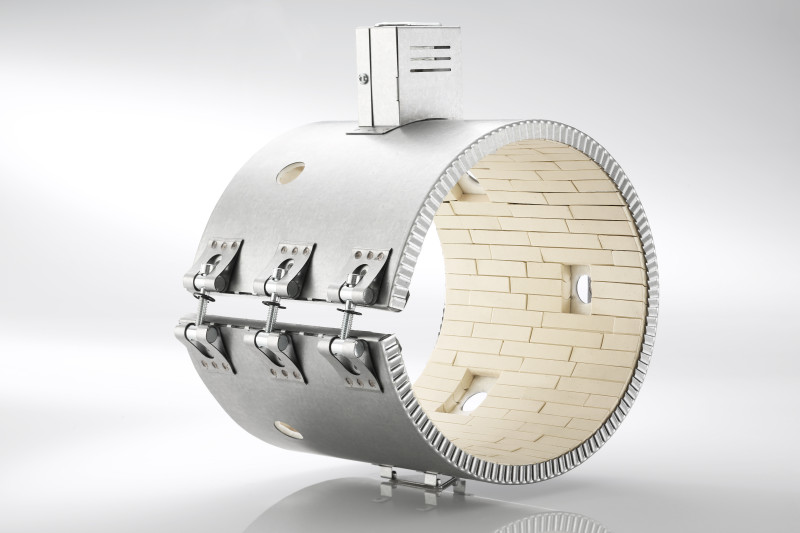

200X180
200X100

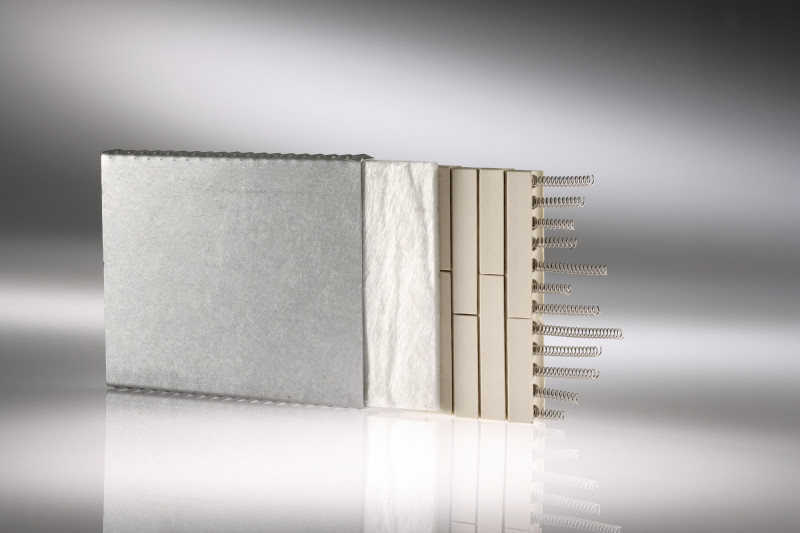

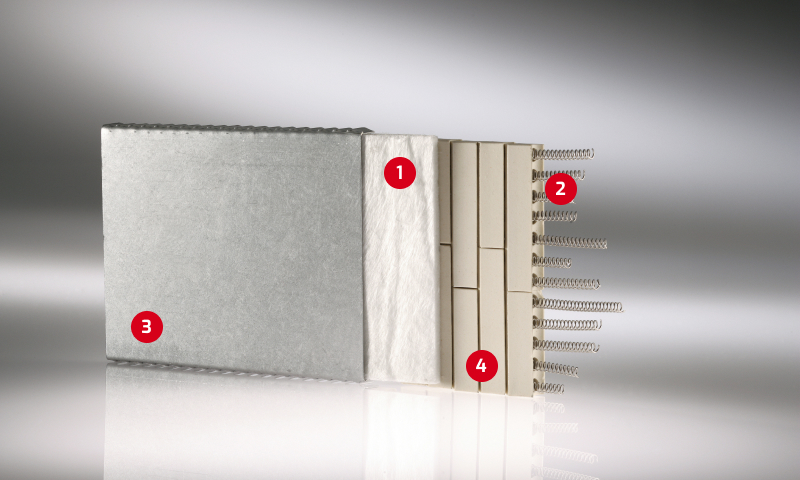

TECHNICAL SPECIFICATIONS

1. Ceramic fiber insulation
2. Resistive winding
3. External aluminized steel
4. Ceramic elements

Isolation material:	Steatit element	Operating temperature:	Up to 600°C
Diameter:	From 60 mm	Operating temperature:	Aluminizied steel
Width:	20 to 600 mm	Sheath material:	Nickel-Chrom 80/20
Max Watt densty:	8W/cmm2	Heating conductor:	Temp. resistant cable with steel mesh up to 400°C
Voltages:	230, 400V or other	For elements with a diameter above 400 mm we recommend using more heating segments.

HOW TO ORDER

GM.12-GM.50-GM.60

SELECTION

Choosing the right band heater for your application is crucial to ensure optimal performance, energy efficiency, and longevity of your heating system.

Here are key factors to consider when selecting a heater band:

Temperature Range: Determine the maximum operating temperatures required for your process.
Watt Density: Assess the power requirements to achieve the desired heating levels efficiently. Higher watt densities are suitable for faster heating and more demanding applications.

For applications requiring heating elements on surfaces with diameters larger than 400 mm, we recommend using multiple segments of heating elements connected together with clamps.

FREQUENTLY ASKED QUESTIONS

When to select Ceramic Band Heater GM.60

Select Ceramic when working temperature is betwen 350°C and 600°C and when you need more power density up to max 8 W/cm2. GM.60 heaters offers Uniform heat distribution and Long Operation life due to highly durable construction. Their ceramic insulation offers superior thermal retention, reducing heat loss and lowering energy consumption.

CONNECTION BOXES

Axial Radial Tangential

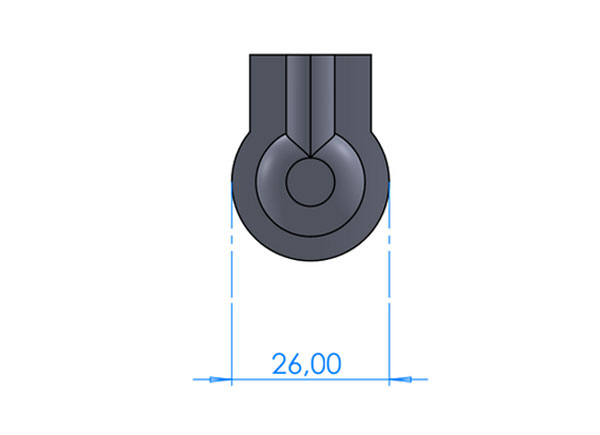

B-02
- Sheet metal housing
- Cable gland
- 230V/400V/5A
- Cable direction EX1, EX3

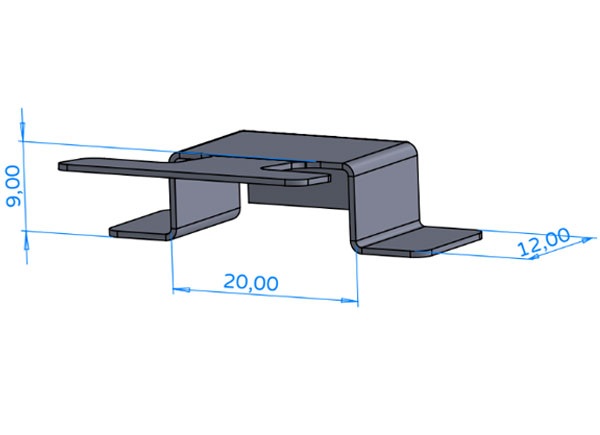

B-05
- Sheet metal housing
- Cable gland
- 230V/400V/5A
- Cable direction EX1, EX3

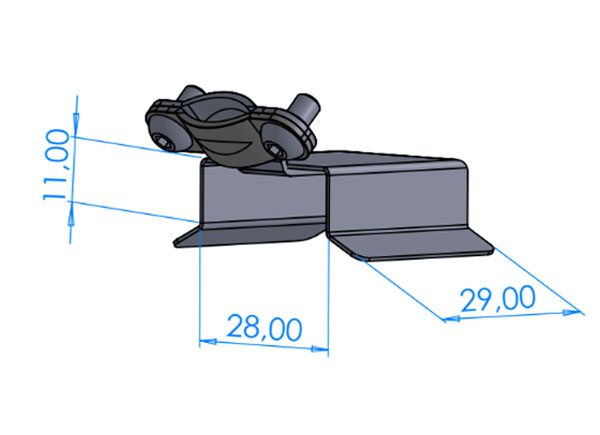

C-10
- Sheet metal housing
- Cable gland
- 230V/400V/10A
- Cable direction EX1, EX3

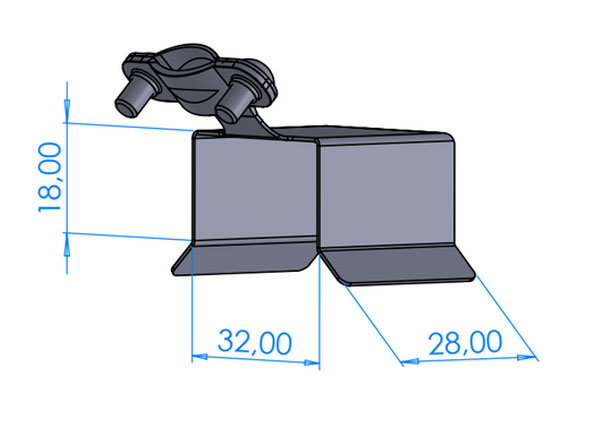

C-20
- Sheet metal housing
- Cable gland
- 230V/400V/16A
- Cable direction EX1, EX3

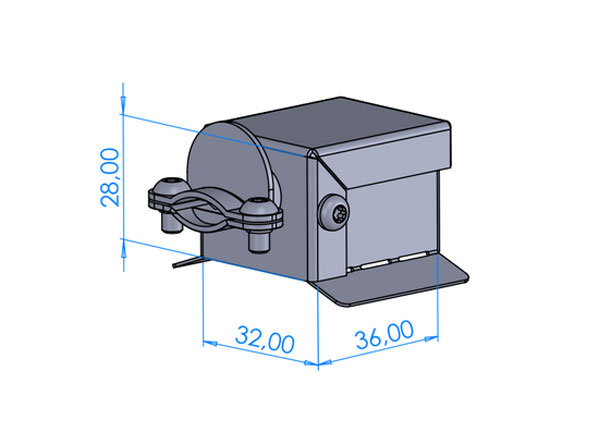

CA-10
- Sheet metal housing
- Cable gland
- 230V/400V/12A
- Cable direction EX1, EX3
CA-20
- Sheet metal housing
- Cable gland
- 230V/400V/15A
- Cable direction EX1, EX3

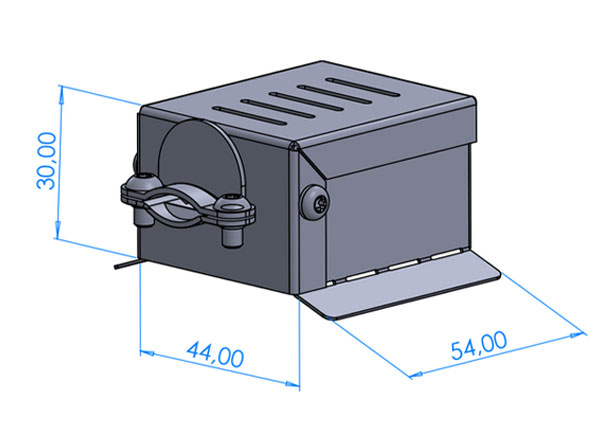

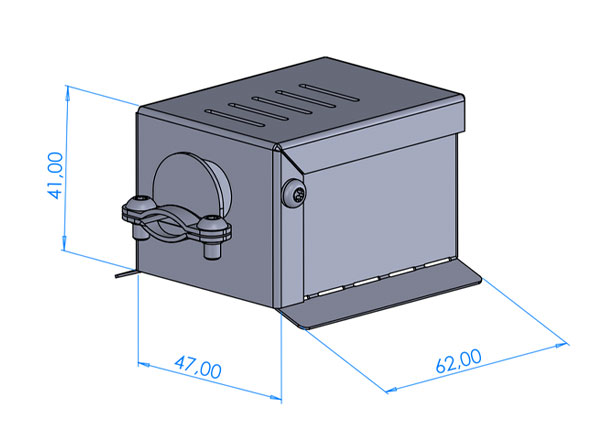

CA-25
- Sheet metal housing
- Cable gland
- 230V/400V/20A
- Cable direction EX1, EX3

HEATER DESIGN SERVICE

We offer detailed 3D models of each heater, allowing you to confirm the design before production. These models ensure precise specifications and compatibility with your application, providing peace of mind and confidence in your order.

Please be aware that this service will incur additional costs.

EXPRESS PRODUCTION SERVICE

When your production halts due to a broken heater, our Express Production Service is here to help. We offer expedited heater manufacturing within 48 hours to get you back up and running quickly. (Service availability depends on current production capacity.) Please be aware that this service will incur additional costs.

Please be aware that this service will incur additional costs.
