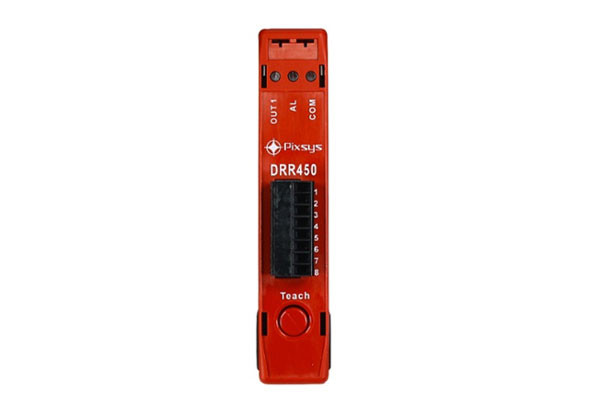

DRR450-12A-T128
Power supply: 24V DC
Power supply: 24 V DC ±10% - galvanic isolation 2,5KV
Power consumption: 1 Watt/VA
Display: -
TA input: 1x T.A. 50 mA, 800 μs - Ris. 0,1 A
Digital output: 1x 5VDC - 20mA max for direct command of SSR Celduc SU series, 1x 24VDC - 50mA max on terminal blocks
Digital input: -
Analogue outputs: 1 x Ris. 13bit, programming between K, J, T, E (automatic compensation of the cold junction 0..50°C, Toll. @25°C ±0,2% F.S.)
Serial communication: RS485 (1200..115200 Baud)

ordering code: 393
Add to cart



MAIN AND SOFTWARE FEATURES





Dimensions:

Module 22,5mm series ESUC DIN-rail mounting EN50022

Tuning:

Manual or automatic

Material:

Box: Polycarbonate V0

Alarm mode:

Absolute/ threshold, band, upper/lower deviation, Alarms with optional manual reset and activation delay, Loop Break Alarm

Weight:

Approx. 75 g

Double P.I.D:

Heating / Cooling with dual P.I.D.

Sealing:

Box and terminal blocks: IP20

Soft-Start:

Rising gradient programmable as Degree / hour or fixed output %

Operating conditions:

Temperature 0-45 °C, humidity 35..95 uR%

Communication protocols:

Modbus RTU

Certifications:

CE

Software parameter configuration:

Software MyPixsysLab
Control algorithms:

ON - OFF with hysteresis, P., P.I., P.I.D., P.D. time proportional
