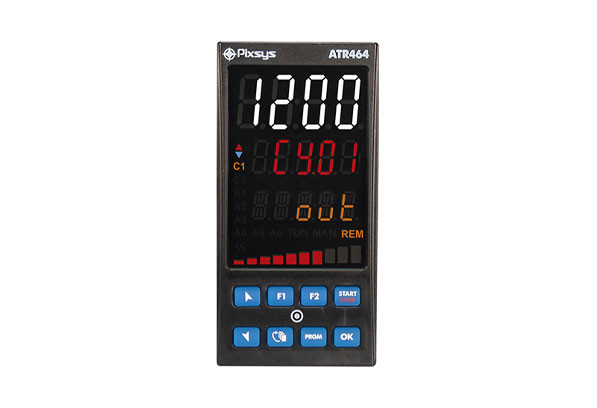

ATR464-24ABC-T
Power supply: 24...220V AC/DC
Power supply: 24...220 V AC / DC ±10% 50/60 Hz - galvanic isolation 2,5KV
Power consumption: 7 Watt/VA
Display: Display 4 digit 0,63" white + Display 5 digit 0,39" red + Display 5 digit 0,33" yellow + bar graph + 12 signalising leds
Analogue inputs: 2x Ris. 16bit, programmable for thermocouples K, S, R, J, T, E, N, B (automatic compensation of cold junction -25..85°C, accuracy @25°C ±0,2% F.S. or ±1 digit), Thermoresistances PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (B 3435K), Process signals 0/4..20mA (40000 points), 0..1/5/10V (54000 points), 0..60mV (16000 points), Potentiometers F.S. 1/150Kohm (50000 points).
Digital output: 2 x PNP 12VDC - 30mA max
Digital input: 4x XPNP
Analogue outputs: 2 x 4..20 mA (40000 points ± 0,2% F.S.) or 0..10 V DC (40000 points ± 0,2% F.S.)
Serial communication: RS485 (1200..115200 Baud)

ordering code: 1138
Add to cart



MAIN AND SOFTWARE FEATURES





Dimensions:

48 x 96 x 88 mm

Tuning:

Manual or automatic

Material:

Box and front: PC UL94V2

Alarm mode:

Absolute / Threshold, Band, High / Low deviation. Alarm with optional Manual reset. Loop Break Alarm

Weight:

Approx. 245 g

Double P.I.D:

Heating / Cooling with dual P.I.D.

Sealing:

Front panel: IP65, Box and terminal blocks: IP20

Data protection:

Lock of Cycles - Access to parameters by Password

Operating conditions:

Temperature 0-45 °C, humidity 35..95 uR%

Open / Close logics:

Motorized valves control

Certifications:

CE, UL

Software parameter configuration:

Software MyPixsysLab, App MyPixsys
Control algorithms:

ON - OFF with hysteresis, P., P.I., P.I.D., P.D. time proportional

Cycles / Profiles

up to 15

Steps    up to 30 for every cycle (the max duration per step is 99.59 hh.mm)
