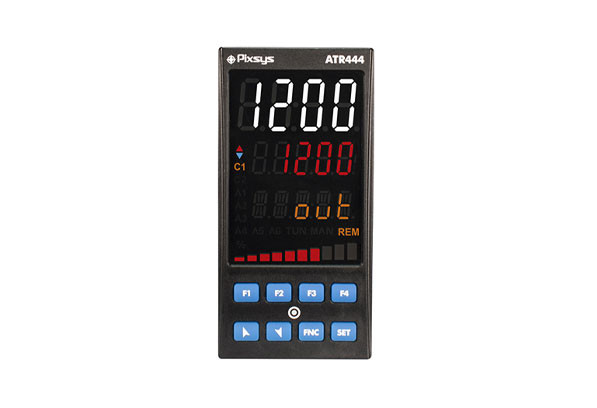

ATR444-14ABC-T
Power supply: 24...230V AC/DC
Power supply: 24...230 V AC / DC ±15% 50/60 Hz - galvanic isolation 2,5KV
Power consumption: 10 Watt/VA
Display: 4 digits 0,63’’ + 5 digits 0,39’’ + 5 digits 0,33’’ + bar graph
Analogue inputs: 1 x Ris. 16bit, programmable for thermocouples K, S, R, J, T, N, B (automatic compensation of cold junction -25..85°C, ±0,2% F.S. ±1 digit F.S.), Thermoresistances PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (β 3435K), process signals 0..10 V (50000 points), 0/4..20mA (40000 points), 0..60 mV (25000 points), potentiometer 1..150 KΩ (50000 points)
Sampling time: Programmable up to 2,1 ms (frequency up to 470 Hz)
TA input: 1x T.A. 50 mA, 800 μs - 4096 points
Digital output: 2x SSR 12 / 24 V DC - 25 mA max
Digital intput: 2x PNP
Auxiliary Outputs: 12/24 VDC - 30mA max for sensor supply
Analogue outputs: 1x Selection 4..20 mA (40000 points ± 0,2% F.S.) o 0..10 V DC (40000 points ± 0,2% F.S.) command or retransmission PV / SPV
Relays Output: 4x 5 A - 250 V AC resistive load
Serial communication : RS485 (1200..115200 Baud) galvanically isolated
USB: 1x micro USB for programming via PC with MyPixsysLab
ordering code: 1134
