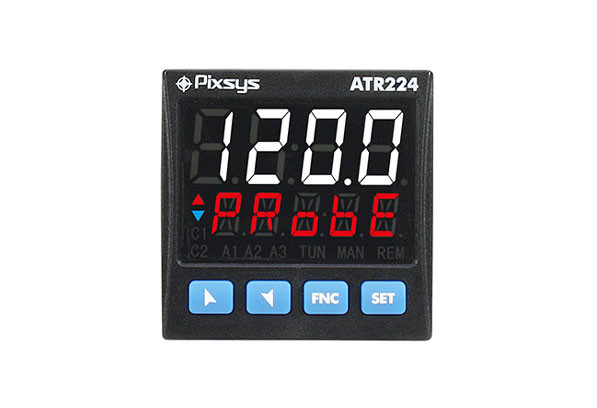

ATR-224-12ABC
Power supply: 24...230V AC/DC
Power supply: 24..230 V AC / DC ±15% 50/60 Hz - galvanic isolation 2,5KV
Power consumption: 8 Watt/VA
Display: 4 digits 0,52’’, 5 digits 0,30’’
Analogue inputs: 1 x Ris. 16bit, programmable for thermocouples K, S, R, J, T, N, B (automatic compensation of cold junction-25..85°C, ±0,2% F.S. ±1 digit F.S.), Thermoresistances PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (β 3435K),process signals 0..10 V (50000 points), 0/4..20mA (40000 points), 0..60 mV (25000 points), potentiometer 1..150 KΩ (50000 points)
Sampling time: Programmable up to 2,1 ms (frequency up to 470 Hz)
Digital output: 1x SSR 12 / 24 V DC - 25 mA max
Digital intput: 1x PNP
Auxiliary Outputs: 12/24 VDC - 30mA max for sensor supply
Relays Output: 2x 2 A - 250 V AC resistive load
USB: 1x micro USB for programming via PC with MyPixsysLab
ordering code: 1028
