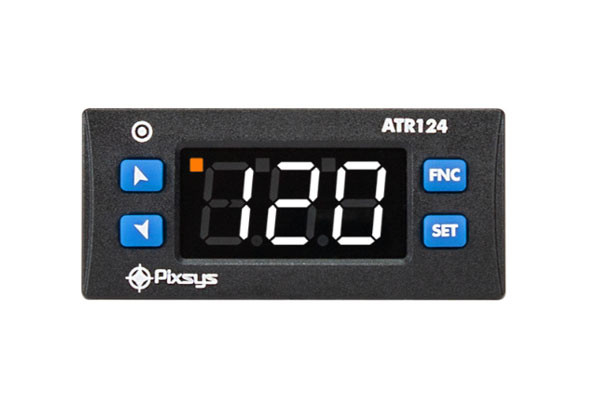

ATR124-AD
Power supply: 12..24V AC/VDC
Power supply: 12..24 VAC/VDC ±10% 50/60 Hz
Power consumption: 4,5 Watt/VA
Display: 3 digits 0,56" white + signalizing LEDs
Analogue inputs: 1x 16bit, programmable for thermocouples K, J, S, R, T (automatic compensation of cold junction 0..50°C, precision @25°C ±0,2% F.S. or ±1 digit), Thermoresistance PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (B 3435K), Process signals 0/4..20mA (40000 points), 0..10V (54000 points), 0..40mV, 0..60mV Potentiometers F.S. 1...150Kohm (50000 points).
Sampling time: Programmable up to 2,1 ms (frequency up to 470 Hz)
Digital output: 1 x 12 V, 25 mA
Relays Output: 2 x 5 A - 250 VAC
Serial communication : -

ordering code: 1126
Add to cart



MAIN AND SOFTWARE FEATURES





Dimensions:

32 x74 x 53mm

Tuning:

Manual or automatic

Material:

Box: PC UL94V2 self-extinguishing, front panel: PC UL94V2

Alarm mode:

Absolute / Threshold, Band, High / Low deviation. Alarm with optional Manual reset.

Weight:

Approx. 120 g

Double P.I.D:

Heating / Cooling with dual P.I.D.

Sealing:

Front panel: IP65, Enclosure+ terminal blocks: IP20

Data protection:

Lock of Command/Alarm Setpoints - Access to parameters by Password

Operating conditions:

Temperature 0-45 °C, humidity 35..95 uR%

Open / Close logics:

Motorized valves control

Certifications:

CE, UL

Software parameter configuration:

Software MyPixsysLab, App MyPixsys
Control algorithms:

ON - OFF with hysteresis, P., P.I., P.I.D., P.D. time proportional
